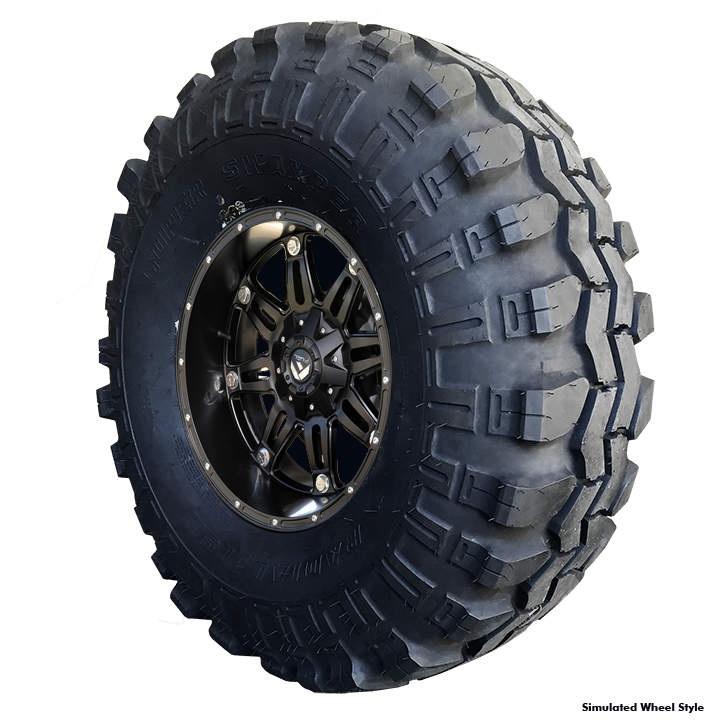

Super Swamper Radial TSL

The Super Swamper Radial TSL is radial version of the Super Swamper TSL which is the culmination of nine years of development and testing which produced the ultimate tire tread design by pairing the concept of the Original Swampers distinctive chevron tread pattern with the famous, trademarked and patented  Interco TSL (three-stage lug) tread design.  TSL is a lug pattern with massive short, intermediate and long lugs that are each uniquely arranged, proportioned and spaced which allow them to bite quickly and self-clean rapidly; this distinctive tread pattern, along with tougher side walls, a quieter ride and increased mileage offering from that of the Original Swamper.

Super Swamper Radial TSLs offer the same unsurpassed traction under the toughest of conditions in an extremely aggressive design as their bias ply counterparts and give today's on-and-off-road driver a tire that is both directionally and laterally stable and unmatched in performance.  The Super Swamper Radial TSL is a D.O.T. approved off-road, purpose built tire that also provide a smooth on-road ride, and surprisingly low road noise.    The Super Swamper Radial TSL  is available in over 15 popular wheel size and width combinations.  Note that the Super Swamper Radial TSL's unique design requires strict attention to air pressure when run on the highway, and actual tread patterns may (slightly) vary based on tire size.

Rim Diameter: 14

SKU Size Aspect Ratio Section Width Weight Tire Tread Width Tire Tread Depth Tread Ply Rating Side Wall Ply Side Wall Lettering Minimum Rim Width Maximum Rim Width O.D. C.S. Revs/Mile Max PSI Max Load D.O.T. Approved
SAM-69R LT225x85RR14 LT225 85R 36 7 19/32 6 2 BSW 6 6 28.70 8.8 793 50 1930 Yes

Rim Diameter: 15

SKU Size Aspect Ratio Section Width Weight Tire Tread Width Tire Tread Depth Tread Ply Rating Side Wall Ply Side Wall Lettering Minimum Rim Width Maximum Rim Width O.D. C.S. Revs/Mile Max PSI Max Load D.O.T. Approved
SAM-44R 32x10.5R15LT 32 10.5 52 9 21/32 6 2 BSW 7 7 32.10 10.5 702 50 2370 Yes
SAM-47R 36x14.5R15LT 36 14.5 82 12 21/32 6 2 BSW 10 10 35.60 15.1 609 35 2910 Yes
SAM-70R LT215x85RR15 LT215 85R 35 7 19/32 6 2 BSW 6 6 28.70 8.6 793 50 1875 Yes
SAM-73R 36x12.5R15LT 36 12.5 70 9 21/32 6 2 BSW 10 10 36.20 12.7 593 35 2600 Yes
SAM-79R 33x12.5R15 33 12.5 60 9 21/32 6 2 BSW 10 10 32.70 12.7 686 35 2225 Yes
SAM-81R 30x10.5R15LT 30 10.5 49 8 21/32 6 2 BSW 8 8 29.70 10.2 767 50 2070 Yes
SAM-82R 31x9.5R15LT 31 9.5 46 7 19/32 6 2 BSW 8 8 30.70 9.6 740 50 2160 Yes
SAM-83R 33x10.5R15LT 33 10.5 56 8 21/32 6 2 BSW 9 9 32.70 10.6 686 50 2620 Yes
SAM-90R 38x15.5R15LT 38 15.5 89 12 21/32 6 3 BSW 10 10 37.10 15.2 568 35 3010 Yes

Rim Diameter: 16

SKU Size Aspect Ratio Section Width Weight Tire Tread Width Tire Tread Depth Tread Ply Rating Side Wall Ply Side Wall Lettering Minimum Rim Width Maximum Rim Width O.D. C.S. Revs/Mile Max PSI Max Load D.O.T. Approved
SAM-01R 33x10.5R16LT 33 10.5 61 8 21/32 10 3 BSW 7 9 32.70 10.2 686 80 3415 Yes
SAM-66R 36x14.5R16LT 36 14.5 88 12 21/32 10 3 BSW 10 10 36.00 14.3 598 65 3640 Yes
SAM-89R 36x12.5R16LT 36 12.5 73 9 21/32 10 3 BSW 10 10 35.90 12.6 601 65 3640 Yes
SAM-97R LT265/80R16 LT265 80R 56 lb 9 21/32 8 3 BSW 7 7 32.20 10.5 700 65 3085 Yes

Rim Diameter: 16.5

SKU Size Aspect Ratio Section Width Weight Tire Tread Width Tire Tread Depth Tread Ply Rating Side Wall Ply Side Wall Lettering Minimum Rim Width Maximum Rim Width O.D. C.S. Revs/Mile Max PSI Max Load D.O.T. Approved
SAM-54R 33x12.5R16.5 33 12.5 66 9 21/32 10 3 BSW 10 10 32.70 11.5 686 65 3525 Yes
SAM-55R 38x15.5R16.5LT 38 15.5 100 12 21/32 10 3 BSW 10 10 37.60 14.3 555 65 3640 Yes
SAM-92R 36x14.5R16.5LT 36 14.5 89 12 21/32 10 3 BSW 10 10 36.00 14.3 598 65 3640 Yes
Share

DISCLAIMER: Every effort has been made to verify the accuracy of the listed specifications. Interco Tire Corporation cannot be held responsible for any discrepancies and as such this information should be considered as approximate.  As much as we would like to help, we cannot and will not give advice on fitting our tires to any particular vehicle.  Ride height changes due to age and use does not allow for steadfast rules.  Your local retailer may be able to help by inspecting your vehicle first hand.  Tread and side wall patterns may vary by tire size.

Please Note: Super Swamper, Three Stage Lug® (TSL) Technology, Bogger, IROK, TrXus, Ground Hawg, Cobalt, SSR, LTB, Sticky, VorTrac, Thornbird, SX, SXII, Trailer Trac, SS-M16, IROK ND, Vampire, Vampire II, ASX, EDL, Swamp Lite, Radial Reptile, LI-EF, Black Mamba, InterForce, AquaTorque,V45, Sniper, Hawkeye, Swamper, Hurricane, Cat-5, side-lugs, and Tread Threadz are patented, trademarked and /or copyrighted terms, logos or designs of Interco Tire Corporation, including tread patterns, and may not be used for any reason without the express written consent of Interco tire Corporation.
